Huikai Video to Fiber Systems
|
New Full HD 4K SDI to Fiber Converter Support 4x CH 3G SDI
Benifits description:
1) 4x 3G-HDSDI (BNC)
3) 1x FC/SC/ST connector
Features:
1) Transmit 4-ch HDSDI & Embedded Audio over one simplex fiber ;
2) Pass Pathological test;
3) Auto select, Support 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, Support 1080P-60Hz;
4) Support SMPTE-292M HD-SDI, SMPTE-259M SDI, SMPTE-424M;
5) LED indicators;
6) Supports hot swapping and hot plugging.
7) 10~60Km on single Mode Fiber transmission
8) 1470~1610nm CWDM wavelengths optional.
Description：
4K SDI to Fiber Converter is an ideal and economic solution for broadcasting or surveillance applications. It receives 4 channel 3G/HD/SD-SDI electrical input, perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60hz). Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with Transwan advanced fiber technology, VSDI can easily pass pathological pattern to prove its complete transmission.
Technical parameter list:
| Product Name | 4K SDI to Fiber Converter V2 |
| Product Model | HK-SDI-4K-X |
| SDI Connector | BNC 75 Ohm |
| Optical Fiber | Single mode / Multimode, FC/SC/ST, Simplex, |
| Power Supply | AC100-240V/DC 12V2A |
| Power Consumption | 12W |
| Dimension / GW | 104 x 104 x 28 mm / 0.90 kg per pair (GW=1.29KG) |
| Working Environment | Working Temperature: -20°C to 55°C; Relative Humidity: 0 ~ 95% (no cold condensation) |
| Warranty | 2 Years |
Diagram:

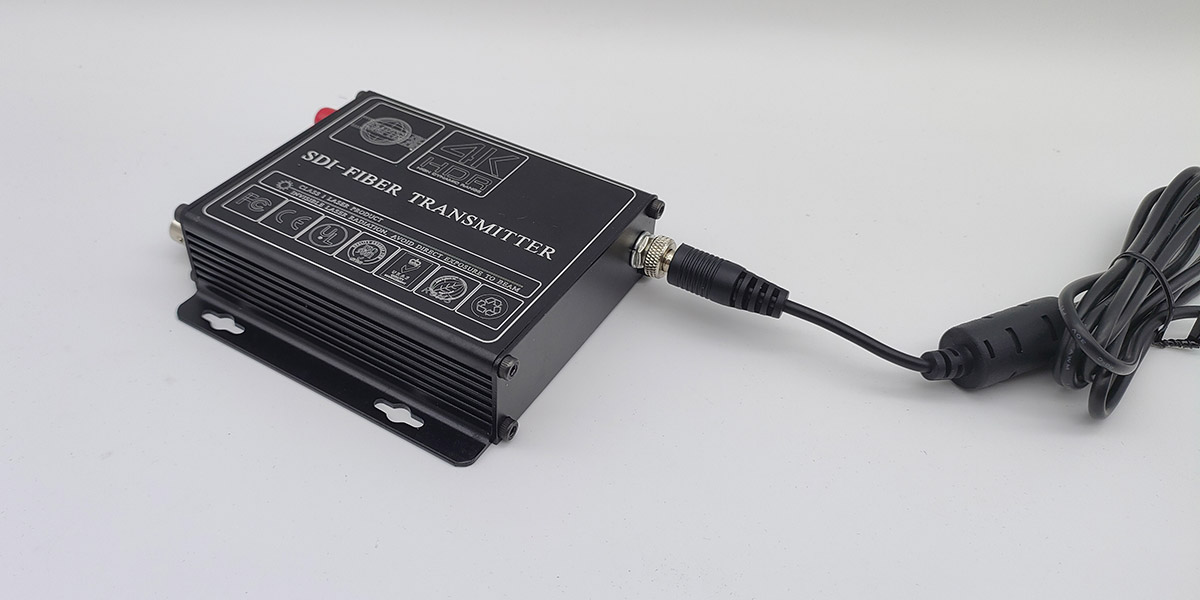

More Photos:
Tags: 4K,4K SDI,SDI to Fiber Converter
